Animation Cases

Garbage Recycling Production Line 3D Animation Production Case

This case completely demonstrates the overall scheme and operation process of a garbage recycling production line through 3D animation. Garbage resource treatment is an important field in the environmental protection industry. Scientific and efficient sorting and recycling technology is of great significance for achieving waste reduction and resource utilization. Through professional 3D animation technology, we comprehensively present the technical characteristics and operation mode of this automated recycling line. Starting from garbage feeding, the animation sequentially demonstrates key processes such as crushing pretreatment, magnetic separation, eddy current separation, air separation, photoelectric separation, and compression baling. The equipment structure and working principle of each sorting station are clearly displayed.

Lithium Battery Electrode Manufacturing Production Line 3D Animation Production Case

This case showcases a 3D animation demonstration of a lithium battery electrode manufacturing production line. Electrode manufacturing is the core process of lithium battery production. The coating quality and process control directly affect the performance and safety of the battery. Through professional 3D animation technology, we comprehensively demonstrated the technical characteristics and operating process of this modern electrode production line. The animation completely presents the key processes of electrode manufacturing, including slurry mixing, coating, drying, rolling, slitting, and die-cutting. The equipment structure and working mode of each workstation are clearly displayed, allowing the audience to fully understand the technical configuration and process flow of the electrode manufacturing line.

Automated Warehouse System 3D Animation Production Case

This case demonstrates the overall scheme and operation mode of an automated storage and retrieval system (AS/RS) through 3D animation. The automated warehouse is the core facility of modern intelligent logistics. Through the coordinated cooperation of high-level racks and automated equipment, high-density storage and efficient turnover of goods are realized. Through professional 3D animation technology, we comprehensively present the design concept and technical advantages of this intelligent warehousing system. The animation demonstrates the core functional modules such as the high-level rack structure of the warehouse, the stacker crane operating system, the conveyor line network, the lifter, and the sorting equipment. The working mode and mutual cooperation of each type of equipment are clearly displayed.

Finishing Machine Animation Production Case

The finishing machine working principle animation details the complete process flow and equipment technical characteristics of metal surface precision treatment from a professional perspective. Finishing processing is an important process to improve the surface quality of metal parts, widely used in automotive, aviation, mold, and other manufacturing fields. Starting from the automatic loading of workpieces, the animation shows how the conveying system accurately feeds the parts to be processed into the processing area. The core of the finishing machine is the grinding and polishing system. Through cross-sectional display and slow-motion playback, the animation clearly presents the contact mode and motion trajectory between the abrasive medium (ceramic balls, steel balls, grinding stones, etc.) and the workpiece surface. Driven by vibration or a roller.

Shadowless Lamp 3D Animation Production Case

This case showcases a 3D animation deconstruction demonstration of a medical shadowless lamp. The shadowless lamp is the core lighting equipment in the operating room, and its optical performance and reliability are directly related to the safety and precision of the surgery. Through professional 3D animation technology, we deeply demonstrate the structural design and working principle of this medical equipment. The animation shows the internal structure of the shadowless lamp layer by layer through an exploded view, including core components such as the LED light source module, reflector cup, cooling system, cantilever joint, balance spring, and sterile handle. The material characteristics and assembly relationships of each component are clearly presented.

Wind Turbine Blade 3D Animation Production Case

This case showcases a 3D animation deconstruction demonstration of a wind turbine blade. The wind turbine blade is the core component of a wind power generator set, and its design and manufacturing technology directly affect the power generation efficiency and operational reliability of the wind turbine. Through professional 3D animation technology, we deeply demonstrate the structural design and technical characteristics of the blade. Starting from the overall appearance, the animation gradually displays the internal structure of the blade, including core components such as the main spar, shear web, skin, leading-edge protection layer, trailing-edge bonding area, and blade root connection section. Through exploded views and cross-sectional displays, the laminated structure of composite materials and the assembly relationships of various components are clearly presented.

通用变频器产品动画案例

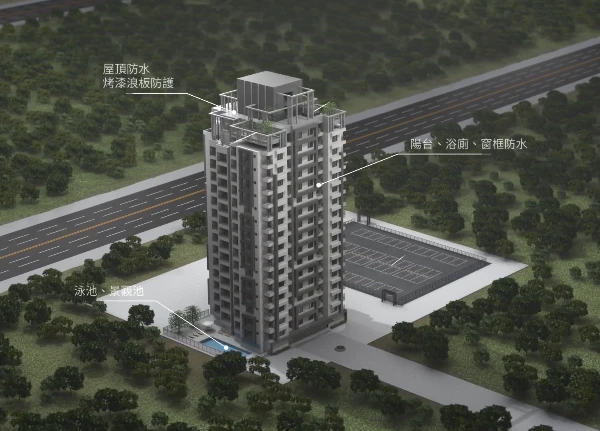

建筑防水材料展示

三维动画突破了传统图纸和实景拍摄的局限，能够深入地下或建筑内部，将防水层如何阻隔水体渗透、特殊节点（如阴阳角、管道根部）的处理细节进行全方位、多角度的可视化呈现。通过动态模拟，可以在施工前对防水方案进行虚拟演练，提前发现设计与施工冲突，优化材料选择与工序安排，有效降低返工风险。最后，这种高度真实感与沉浸感的演示方式，极大地提升了沟通效率与客户信任度，无论是用于技术交底、施工人员培训，还是项目投标与品牌营销，都具有强大的说服力
